How Pasquill JJI-Joists Are Made

JJI-Joists, are beams with an I or H-shaped cross-section. Also known as I-Joists or I-beams. The horizontal elements are flanges, while the vertical element is called the web.

They are manufactured by James Jones & Sons for Pasquill to precise specification using high grade solid timber flanges bonded to an OSB web.

Using JJI-Joists is a very efficient form for carrying both bending and shear in the plane of the web, their superior strength-to-weight ratio allows longer spans and easier handling.

Features & benefits of JJI Floor Joists / I-Beams

  • Quicker to install ‐ Easier to install than a solid timber set: no herringbone strutting or blocking, no special tools required. Large flange profile enables ease of fixing. Saving you time on site, saving you money
  • Lighter ‐ Typically half the weight of traditional solid timber sections making them easier to handle and install
  • Improved service installation-9mm OSB/3 web allows easy access for wiring, plumbing and mechanical ventilation & heat recovery systems. Able to accommodate large service holes (max 125mm)
  • Squeak free joists ‐ Structurally efficient profile also provides flat floors and ceilings
  • Dimensionally stable, will not shrink, bow, twist, shrink or split which means Less building maintenance
  • Part E Compliant ‐ Compliant with part E (Sound) legislation
  • Uniform ‐ More uniform in dimension than sawn timber joists
  • 220 mm section ‐ Section size matches typical blockwork coursing
  • Fire Safe ‐ 30 and 60 minute fire certificate
  • Quality Assured ‐ Consistent performance ‐ ETA, CE mark
  • Supporting UK manufacturing ‐ UK Manufactured
  • Established system ‐ Established in the UK in 1998
  • Sustainably Sourced ‐ Chain of custody certification and labelling
  • Technical Support ‐ Full national coverage with local knowledge
i-beams-services

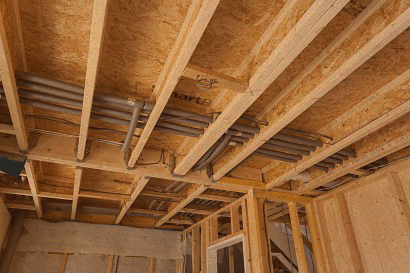

Services installed during installation of I-beams

Their shrink and warp resistance helps create ‘quiet’ floor solutions and consistent dimensions provide extra stability. JJI-Joists / I-Beams also have the benefit of not needing insulation to gain compliance with Building Regulation Part E (sound) when installed at 400mm centres and above. To find out further information take a look at the JJI-Joist Site Guide Floor Details and the JJI-Joist Technical Manual.

View our JJI-Joist information factsheet.

Contact us

RECENT PROJECT

Kings Hawford School – Glulam Beams & I Beams

The Multi-Comfort building concept.

Read more

glulam kings hawford school

FAQs

What are JJI-Joists?

JJI-Joists are FSC® and PEFC certified I-Joists, branded as JJI-Joists by James Jones & Sons Ltd. All of our JJI-Joists are manufactured by James Jones & Sons to precise specification.

What are I-Joists / I-beams used for?

I-Joist / I-Beam floor joists are used to support a floor that spans over an open area. This will then usually form the upper storey within a house.

We may recommend our JJI-Joists when needing a lightweight option that is easier to handle and install than solid timber.

Are I-Joists cheaper than timber?

Because of the amount of material used, I-Joists are slightly more expensive than the traditional timber. However, the lightweight construction of I-Joists / I-Beams makes them significantly easier to handle and install. So you are paying for the ease of installation.

How far can an I-joist span?

Spans for I-Joists like other structural components are governed by the loads being carried. The maximum length of our joists is 13m

What is the difference between a joist and a beam?

A beam is the main load-bearing element of a floor structure supporting the other elements such as joists.

What is the difference between a truss and a joist?

Joists are used to support the load which a floor withstands and are like the skeleton of a building. Trusses are used as roof support systems and are placed on the top of a building.
